vendas@sparecenter.comNumber: | 3500/32 125720-01 |
| Product Type: | 4-Channel Relay Output Module |
| Inputs Power Consumption: | 6 watts typical. |
| Outputs OK LED: | Illuminated when module is functioning properly. |
| TX/RX LED: | Transmit and Receive. Flashes to indicate proper communications between this module and other modules within the rack. |
| CH ALARM LED: | Illuminated when the Relay Channel is in an alarm state. |
| Relays Type: | 24V DC |
| Power Consumption: | Two single-pole, double-throw (SPDT) relays connected in a double-pole, double-throw (DPDT) configuration. |
| Environmental Limits | |
| Operating Temperature: | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature: | -40 °C to +85 °C (-40 °F to +185 °F) |
Features of the BENTLY NEVADA 3500/32 125720-01
1
Four Independently Programmable Relay Outputs: Provides flexibility to configure each relay output to meet specific system requirements.
Alarm Drive Logic: Includes built-in alarm drive logic programmed using AND and OR logic for custom alarm responses based on monitored inputs.
2
Scalable: Multiple 4-Channel Relay Modules can be installed in any available slot for expanded functionality.
Flexible Configuration: Configurable via 3500 Rack Configuration Software to meet specific application needs, including alarms and control outputs.
3
Industrial Application: Ideal for alarm management, control, and fault-tolerant systems.
Compatible with TMR Systems: In TMR applications, use the 3500/34 TMR Relay Module for enhanced reliability and fault tolerance.
4
Integration with Monitor Channels: Can utilize inputs from any monitor channel or combination of channels in the rack to trigger alarm logic.
If you want to more details，please contact me without hesitate.Email：sales@sparecenter.com

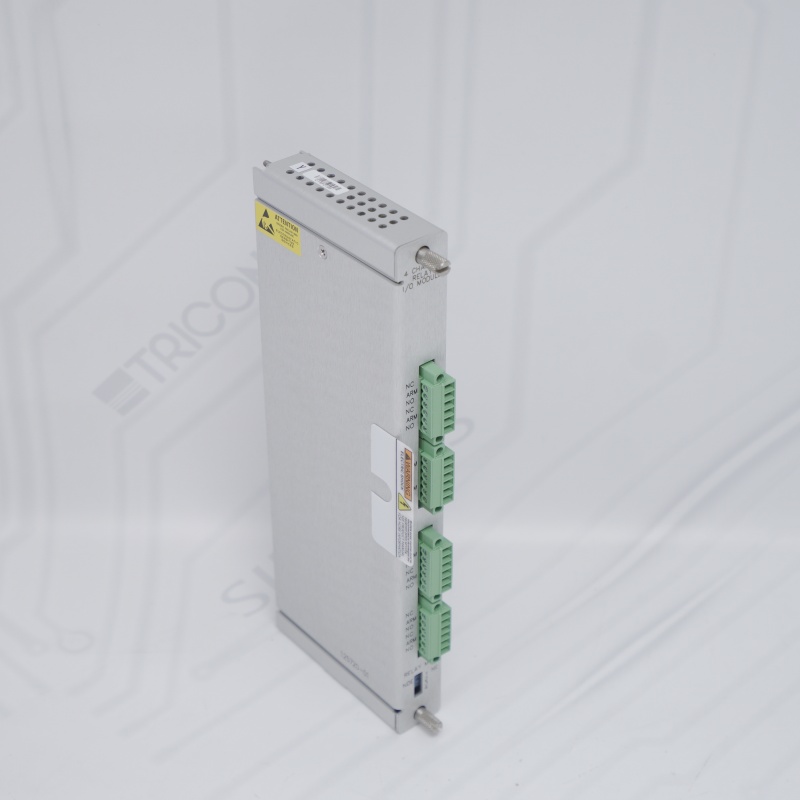

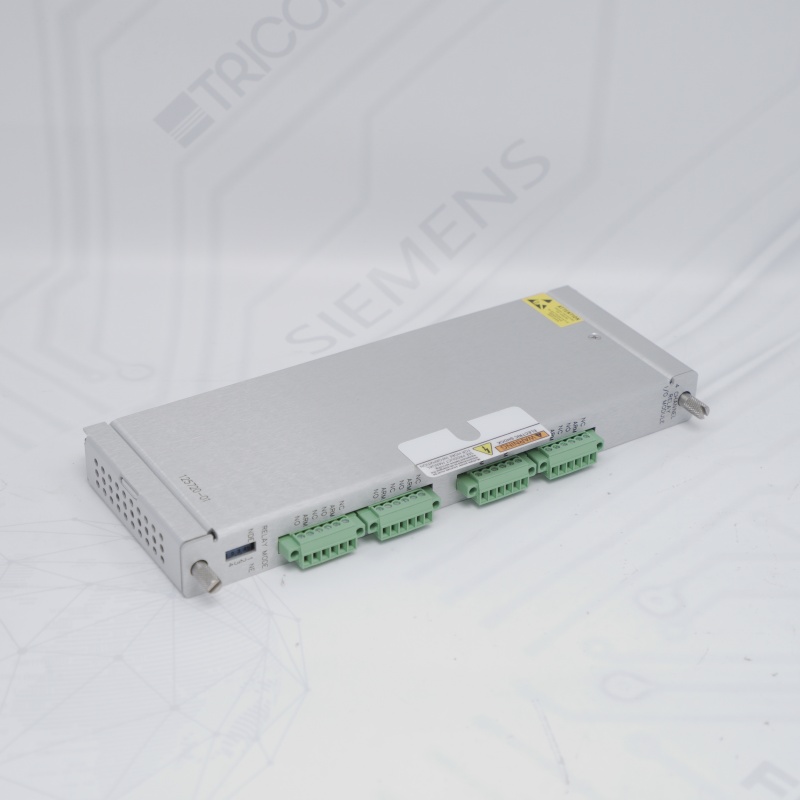

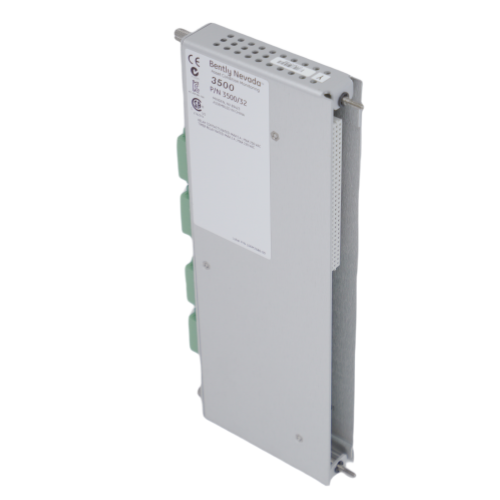

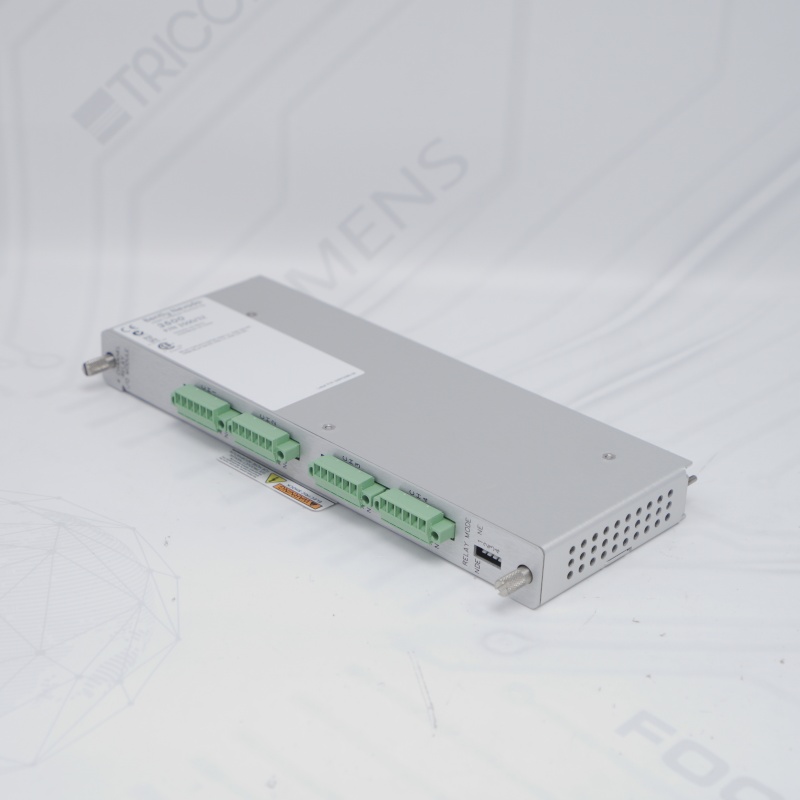

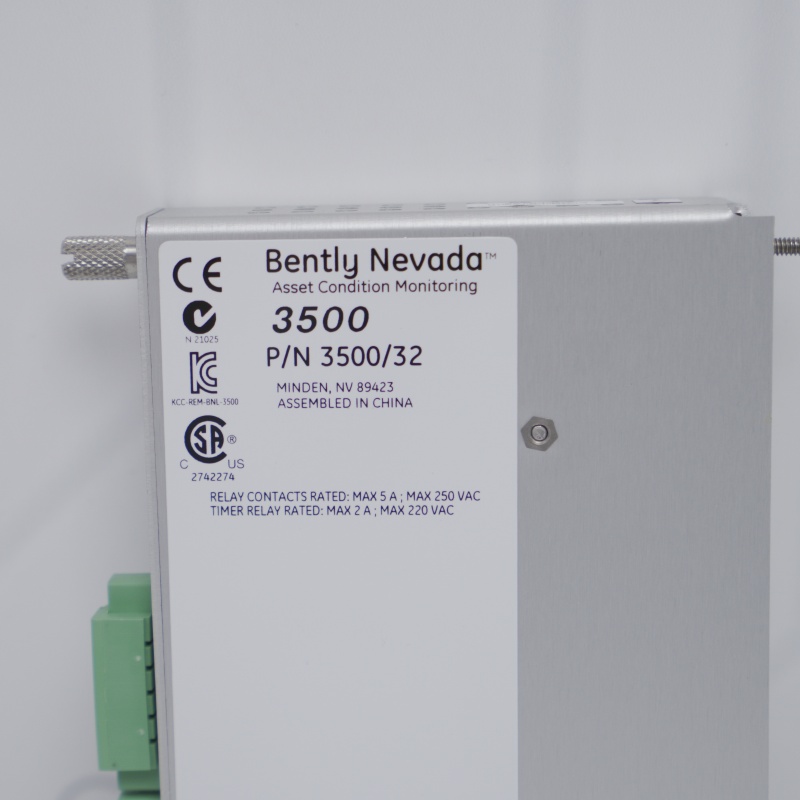

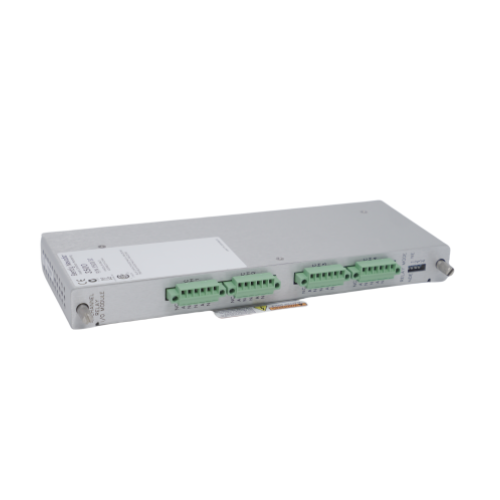

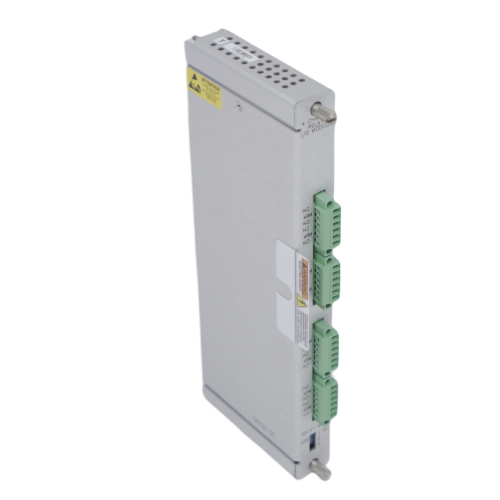

Product Pictures
BENTLY NEVADA 3500/32
BENTLY NEVADA 3500/32
BENTLY NEVADA 3500/32
